USB Charging Guide

IMPORTANT INFORMATION
Be sure to scroll the complete page to choose the correct Mechanism for your application
In all our heritage style USB charging outlets we use high quality modules such as HPM - Clipsal and SClick.
Please use the following guidelines to select the most practical USB Charging Outlet for your application.

For 10 - 31 - 45 - 55 - 85 Series we us the SClick style.  Click HERE for further  information.
For Bakelite Series we use the SClick style.  Click HERE for further  information.
For Art Deco Series we use the Clipsal style.  Click HERE for further  information.
For all of the Round Tradco Style such as 5320USB we use Clipsal. Click HERE for further  information.
This style will require a special mounting block which is coming soon. Please contact us for further information at the stage.
For all of the Tradco Flat Plate Style such as 5807USB we use HPM Twin Outlet. Click HERE for further  information.
For 31 TWIN Series such as 31USBTW PB we use HPM Twin Outlet. Click HERE for further  information.



HPM Twin Outlet
1. FEATURES

•             Suits Apple™, Samsung™ and all other smartphones, tablet brands or portable USB devices
•             Standby power consumption<0.07W
•             Mains Connection via 'A' and 'N' wires

  • TWIN OUTLETS 5Vdc 2x2.4A - Standard USB TYPE A

2. OPERATING CONDITIONS

•             Operating Voltage: 230 - 240Va.c.  50Hz
•             Output: 5V d.c +/- 5% 4.8A
•             Ambient Operating Temperature: 5°C to +40°C
•             Certified Standard: AS/NZS 60950-1, CISPR22, AS/NZS 4655 MEPS
•             Maximum Load: 5W
•             Overload protection on output: 5.1A

Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

3. LOAD COMPATIBILITY

•             Suitable for Apple™ iPhones®, iPads®, iPods®
•             Suitable for Samsung™ Galaxy Phones and Tablets
•             Other applications include

                 •            Smartphones
                 •            Tablets
                 •            Action Cameras
                 •            eBook Readers
                 •            GPS Units
                 •            MP3/ MP4 Players
                 •            Digital Cameras
                 •            Any portable USB chargeable devices

NOTE: This USB Charging Module is designed to charge portable devices with an internal battery it should not be used as a continuous use power supply for devices without a battery.

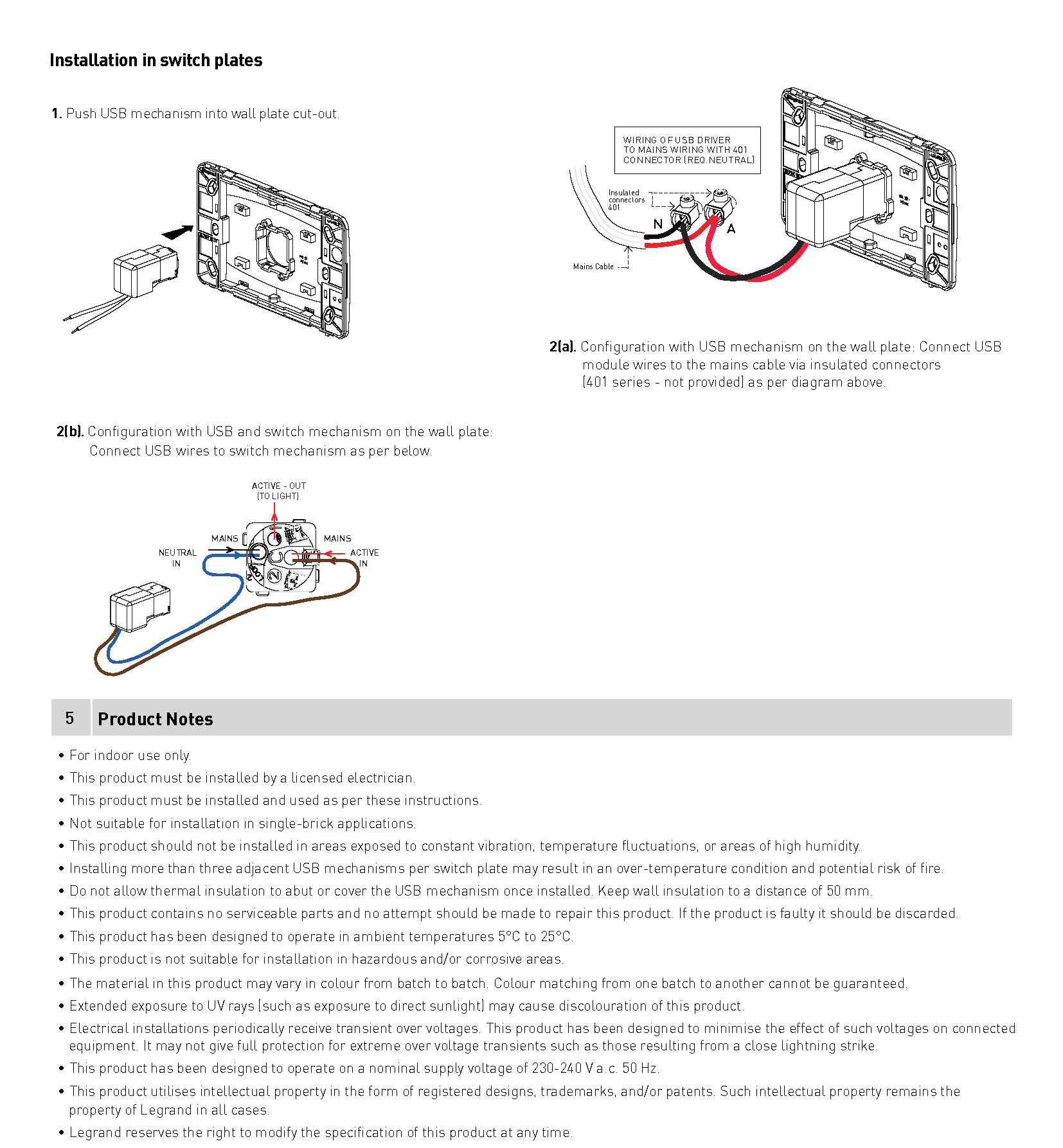

 A technical reference sheet is supplied with mechanism. Click HERE for further technical data


CLIPSAL

1. FEATURES

•             Suits Apple™, Samsung™ and all other smartphones, tablet brands or portable USB devices
•             Standby power consumption<0.07W
•             Requires Neutral

  • SINGLE OUTLET 5Vdc 1x1.2A - Standard USB TYPE A


2. OPERATING CONDITIONS

•             Operating Voltage: 230Va.c. (50mA) 50Hz
•             Output: 5W, 5.75 - 5.25V DC 1.2A
•             Operating Temperature: 5°C to +40 °C
•             Certified Standard: AS/NZS3100 - EMC Approval CISPR 22:- AS/NZS4665
•             Maximum Load: 5W
•             Maximum Current capacity: 1.2A

Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

3. LOAD COMPATIBILITY

•             Suitable for Apple™ iPhones®, iPads®, iPods®
•             Suitable for Samsung™ Galaxy Phones and Tablets
•             Other applications include

                 •            Smartphones
                 •            Tablets
                 •            Action Cameras
                 •            eBook Readers
                 •            GPS Units
                 •            MP3/ MP4 Players
                 •            Digital Cameras
                 •            Any portable USB chargeable devices

NOTE: This USB Charging Module is designed to charge portable devices with an internal battery it should not be used as a continuous use power supply for devices without a battery.

 A technical reference sheet is supplied with mechanism. Click HERE for further technical data


 SClick

1. FEATURES

•             Suits Apple™, Samsung™ and all other smartphones, tablet brands or portable USB devices
•             High efficiency, only 50mW standby power
•             Requires Neutral

  • SINGLE OUTLETS 5Vdc 1x1A - Standard USB TYPE A



2. OPERATING CONDITIONS

•             Operating Voltage: 230Va.c. (50mA) 50Hz
•             Output: 5W, 5V 1A
•             Operating Temperature: 0 to +50 °C
•             Certified Standard: AS/NZS 60950-1, CISPR22, AS/NZS 4655 MEPS
•             Maximum Load: 5W
•             Maximum Current capacity: 1A

Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

3. LOAD COMPATIBILITY

•             Suitable for Apple™ iPhones®, iPads®, iPods®
•             Suitable for Samsung™ Galaxy Phones and Tablets
•             Other applications include

                 •            Smartphones
                 •            Tablets
                 •            Action Cameras
                 •            eBook Readers
                 •            GPS Units
                 •            MP3/ MP4 Players
                 •            Digital Cameras
                 •            Any portable USB chargeable devices

NOTE: This USB Charging Module is designed to charge portable devices with an internal battery it should not be used as a continuous use power supply for devices without a battery.

 A technical reference sheet is supplied with mechanism. Click HERE for further technical data
